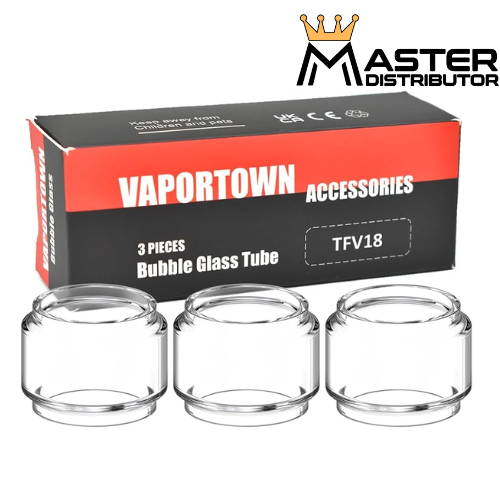

SMOK TFV18 Tank Tube
The SMOK TFV18 Replacement Glass Tube is a high-quality Pyrex glass component designed specifically for the SMOK TFV18 Sub-Ohm Tank. This replacement tube is essential for restoring your tank’s functionality if the original glass becomes cracked, chipped, or broken. It is engineered to withstand high temperatures and is resistant to the corrosive nature of various e-liquids.
The “Bulb” design is standard for this series, providing a significant juice capacity to accommodate the high-wattage requirements of the TFV18’s mesh coils.
Core Specifications
-
Compatibility: SMOK TFV18 Sub-Ohm Tank (Also compatible with the TFV16 Tank).
-
Material: Food-grade, heat-resistant Pyrex glass.
-
Design: “Bulb” shape for maximum volume.
-
Capacity: 7.5ml (standard) / 6.5ml (when used with TFV18 Dual Mesh coils).
-
Quantity: Typically sold as 1 individual replacement tube per pack.
Installation Guide
-
Safety First: Ensure your tank is completely empty and detached from your mod. If the glass is shattered, use gloves or a tool to carefully remove the shards.
-
Disassemble: Unscrew the base and the top cap of the TFV18 tank.
-
Clean O-Rings: Remove the old silicone O-rings and wash the metal components of the tank with warm water to remove any glass dust or old residue.
-
Seat the Glass: Place the new glass tube firmly onto the base’s silicone seal.
-
Reassemble: Carefully screw the top section back on. Ensure the glass is centered and the seals are flush to prevent leaking.
-
Test: Fill with a small amount of liquid first to verify a vacuum seal has been achieved before filling completely.
Warning:
-
Shard Hazard: If replacing broken glass, double-check the chimney and airflow base for tiny glass splinters. Inhaling glass particles is extremely dangerous.
-
O-Ring Integrity: If your glass broke during a drop, your silicone O-rings may have been cut. Check them for tears; if they are damaged, the tank will leak regardless of the new glass.
-
Thermal Shock: Avoid washing a hot tank with cold water, as the rapid temperature change can cause even high-quality Pyrex to crack.
-
Over-Tightening: When reassembling, screw the parts together until finger-tight. Applying excessive force can put too much pressure on the glass and cause it to snap.
Note: To protect your new glass, it is highly recommended to use a silicone vape band (vape ring) around the widest part of the bulb. Because the TFV18 is a large, heavy tank, the bulb glass is often the first point of contact if the device tips over. Storing your spare glass in a cool, dry place inside its protective box will ensure it is ready for use when needed.
